VN10KM
109,71 TL (Kdv Dahil)
20,79 TL den başlayan taksitlerle!!
Stok Kodu
:
6FM9P736LV

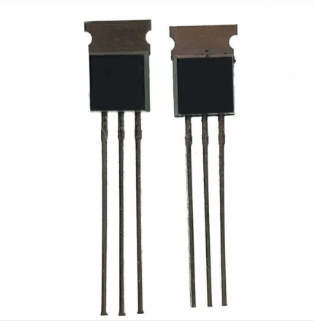

VN10KM TO-237 0.31A 60V 1W N-CHANNEL MOSFET TRANSISTOR
VN10KM
Type Designator: VN10KM
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 1 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 15 V
Maximum Drain Current |Id|: 0.31 A
Maximum Junction Temperature (Tj): 150 °C
Drain-Source Capacitance (Cd): 25 pF
Maximum Drain-Source On-State Resistance (Rds): 5 Ohm
Package: TO-237
