TIP 147
%5
113,68 TL (Kdv Dahil)
119,66 TL
%3,00
Havale İndirimli Fiyatı : 110,26 TL
11,84 TL den başlayan taksitlerle!!
Stok Kodu
:
676118

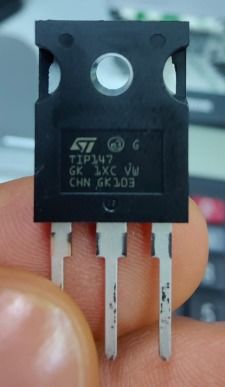

TIP147 TO-247 10A 100V 125W PNP DARLINGTON TRANSISTOR
TIP147
Type Designator: TIP147
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 125 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 500
Package: TO218
Bu ürüne ilk yorumu siz yapın!
