MMF70R900P
%5
114,57 TL (Kdv Dahil)
120,60 TL
%3,00
Havale İndirimli Fiyatı : 111,13 TL
21,71 TL den başlayan taksitlerle!!
Stok Kodu
:
FNPTV147

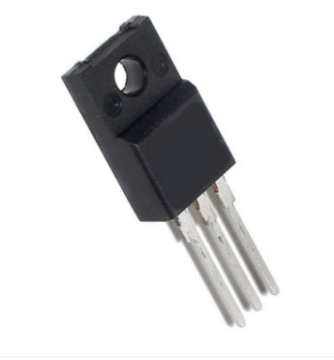

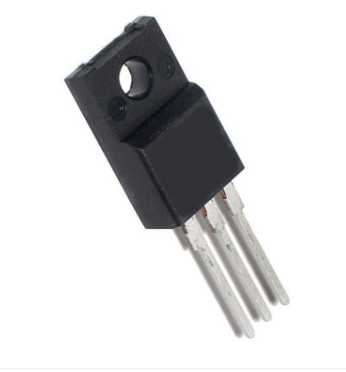

MMF70R900P TO-220F 700V 5A N-CHANNEL MOSFET TRANSISTOR MMF70R900PTH
Type Designator: MMF70R900PTH
Marking Code: 70R900P
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 22 W
Maximum Drain-Source Voltage |Vds|: 700 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 5 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 15 nC
Rise Time (tr): 25 nS
Drain-Source Capacitance (Cd): 330 pF
Maximum Drain-Source On-State Resistance (Rds): 0.9 Ohm
Package: TO-220F
Bu ürüne ilk yorumu siz yapın!
