FQA24N50 TO247
%5
164,57 TL (Kdv Dahil)
173,23 TL
%3,00
Havale İndirimli Fiyatı : 159,63 TL
31,18 TL den başlayan taksitlerle!!
Stok Kodu
:
mof459

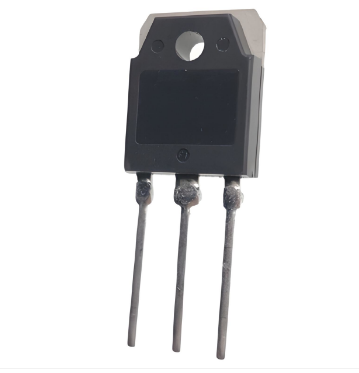

FQA24N50 TO-3P 24A 500V 200mΩ N-CHANNEL MOSFET
FQA24N50
Type Designator: FQA24N50
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 290 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 24 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 90 nC
Maximum Drain-Source On-State Resistance (Rds): 0.2 Ohm
Package: TO3PN
Bu ürüne ilk yorumu siz yapın!
