MD24N50
%5
124,62 TL (Kdv Dahil)
131,18 TL
%3,00
Havale İndirimli Fiyatı : 120,88 TL
23,61 TL den başlayan taksitlerle!!
Stok Kodu
:
674373

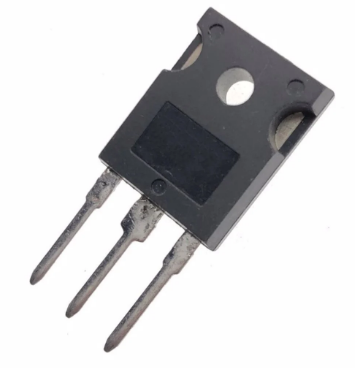

IXTH24N50L - (MD24N50) TO-247 24A 500V 400W 0.3Ω N-CHANNEL MOSFET
IXTH24N50L MOSFET
Type Designator: IXTH24N50L
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 400 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 24 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 160 nC
Rise Time (tr): 500 nS
Maximum Drain-Source On-State Resistance (Rds): 0.3 Ohm
Package: TO247
