FMH09N90E
191,03 TL (Kdv Dahil)
36,19 TL den başlayan taksitlerle!!
Stok Kodu
:
JT9LARSD4Q

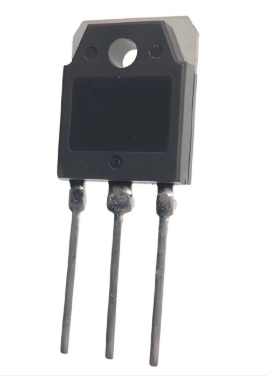

FMH09N90E TO-3P 9A 900V 205W 1.4Ω N-CHANNEL MOSFET
FMH09N90E MOSFET
Type Designator: FMH09N90E
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 205 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4.5 V
Maximum Drain Current |Id|: 9 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 50 nC
Rise Time (tr): 30 nS
Drain-Source Capacitance (Cd): 150 pF
Maximum Drain-Source On-State Resistance (Rds): 1.4 Ohm
Package: TO-3P-Q
