STP34NM60N
419,76 TL (Kdv Dahil)
%3,00
Havale İndirimli Fiyatı : 407,17 TL
79,53 TL den başlayan taksitlerle!!
Stok Kodu
:
2ZZP34VANY

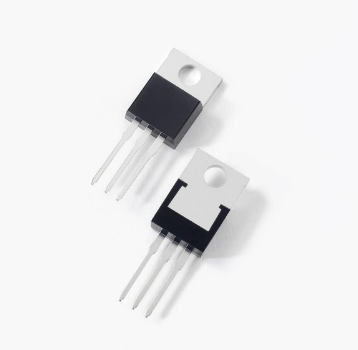

STP34NM60N TO-220 29A 600V 250W 0.105Ω N-CHANNEL MOSFET
STP34NM60N MOSFET
Type Designator: STP34NM60N
Marking Code: 34NM60N
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 210 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 25 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 29 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 80 nC
Drain-Source Capacitance (Cd): 173 pF
Maximum Drain-Source On-State Resistance (Rds): 0.105 Ohm
Package: TO220
