FQPF3N90
%5
35,52 TL (Kdv Dahil)
37,39 TL
%3,00
Havale İndirimli Fiyatı : 34,46 TL
6,73 TL den başlayan taksitlerle!!
Stok Kodu
:
674200

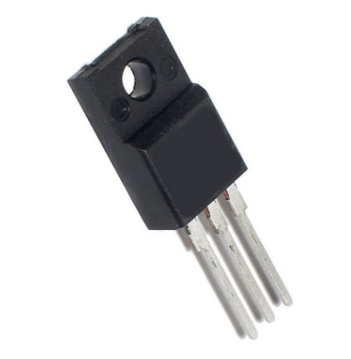

FQPF3N90 TO-220F 2.1A 900V 43W 4.25Ω N-CHANNEL MOSFET
FQPF3N90 MOSFET
Type Designator: FQPF3N90
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 43 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 2.1 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 20 nC
Rise Time (tr): 45 nS
Drain-Source Capacitance (Cd): 65 pF
Maximum Drain-Source On-State Resistance (Rds): 4.25 Ohm
Package: TO-220F
