2SK1762
107,33 TL (Kdv Dahil)
20,33 TL den başlayan taksitlerle!!
Stok Kodu
:
RRGJAD86KB

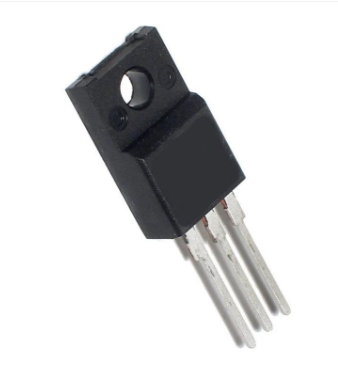

2SK1762 TO-220F 250V 12A 35W N-CHANNEL MOSFET TRANSISTOR
2SK1762
Type Designator: 2SK1762
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 35 W
Maximum Drain-Source Voltage |Vds|: 250 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 12 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 65 nS
Drain-Source Capacitance (Cd): 440 pF
Maximum Drain-Source On-State Resistance (Rds): 0.35 Ohm
Package: TO220FM
