2SK 2605
%5
113,86 TL (Kdv Dahil)
119,85 TL
%3,00
Havale İndirimli Fiyatı : 110,44 TL
21,57 TL den başlayan taksitlerle!!
Stok Kodu
:
673831

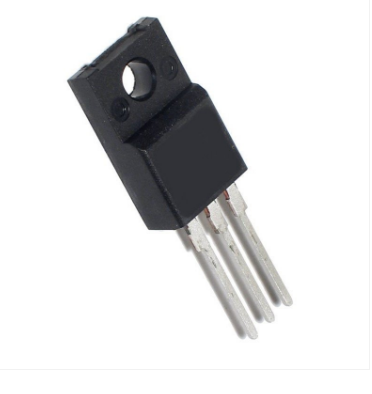

2SK2605 TO-220F 30V 5A 45W N-CHANNEL MOSFET TRANSISTOR
2SK2605
Type Designator: 2SK2605
Marking Code: K2605
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 45 W
Maximum Drain-Source Voltage |Vds|: 800 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 5 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 34 nC
Rise Time (tr): 40 nS
Drain-Source Capacitance (Cd): 105 pF
Maximum Drain-Source On-State Resistance (Rds): 2.2 Ohm
Package: TO220NIS
