2SD468-C
9,19 TL (Kdv Dahil)
0,96 TL den başlayan taksitlerle!!
Stok Kodu
:
4CSWJ4D6MA

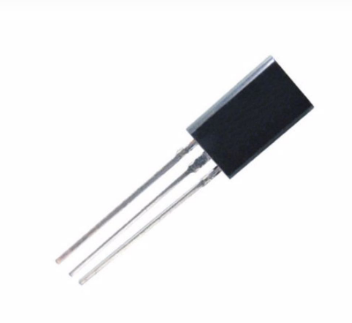

2SD468-C TO-92L 1A 20V 0.9W NPN TRANSISTOR
2SD468C
Type Designator: 2SD468C
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.9 W
Maximum Collector-Base Voltage |Vcb|: 25 V
Maximum Collector-Emitter Voltage |Vce|: 20 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 190 MHz
Collector Capacitance (Cc): 22 pF
Forward Current Transfer Ratio (hFE), MIN: 160
Package: TO92L
